COATED SHEET

The breadth and quality of U. S. Steel's coated steel sheet offering means that whatever your requirements, we have a product to meet them.

U. S. Steel produces a variety of coated steel sheet products. These products are manufactured to meet almost any customer ordered requirement with respect to corrosion resistance of the coating, strength level and/or formability requirements of the steel sheet, thickness, width, surface quality, and surface finish.

Our coated sheet products begin with a high-quality steel substrate. Our investment in state-of-the-art steel-making capabilities, ladle metallurgy, vacuum degassing, continuous casting and hot and cold rolling facilities results in steel sheet of excellent and consistent quality. This advanced technology, coupled with ultramodern coating facilities, gives U. S. Steel's customers the widest choice of superior coated steel sheet products.

Steel can be coated with several types of metallic coatings that provide very substantial improvements in corrosion performance whether the steel is used for cars, trucks, buildings, storage containers, mailboxes, or numerous other applications.

U. S. Steel's family of coated steel sheet products includes both hot-dipped and electrolytically-applied coatings. The protective coatings add superior corrosion resistance to the many other desirable properties of steel.

The various types of U. S. Steel coated steel products give our customer a choice of combinations to provide the amount of corrosion resistance required, strength, formability, paintability, surface appearance and other properties and characteristics to closely match the steel sheet to the application.

Galvalume® is a registered trademark of BIEC International Inc. Used under license.


COATED SHEET PRODUCTS

FEATURES

U. S. Steel ACRYLUME® steel sheet is a coated sheet product that increases the excellent corrosion resistance of GALVALUME® steel with a clear organic resin surface treatment applied over the GALVALUME® sheet coating. Essentially invisible, the treatment provides excellent characteristics to enhance the performance and applicability of GALVALUME® steel sheet.

APPLICATIONS

Construction

  • Pre-Engineered Metal Buildings
  • Industrial Roofing and Siding
  • Building/Wall Panels
  • Electrical Boxes
  • Guide Rails
  • Playground Equipment

HVAC

  • Air Conditioning Equipment
  • Heating Equipment
  • Walk-In Coolers
  • Furnace Parts

Automotive/Industrial

  • Automotive Under-Body Parts
  • Farm Equipment and Machinery

Appliance

  • Home Laundry Appliances
  • Small Appliances
  • Vending Machines
FEATURES

ACRYLUME E PLUS™ steel sheet offers the environmentally conscious metal building construction industry a greener alternative by roll-coating a thin, uniform film of chromium-free emissive acrylic onto U. S. Steel's GALVALUME® coated sheet. GALVALUME® carbon steel, coated with aluminum-zinc alloy by a continuous hot-dip process, combines the excellent barrier corrosion protection of aluminum with the galvanic protection of zinc. ACRYLUME E PLUS™ steel sheet is designed to meet challenging solar reflectance and thermal emittance regulations, as well as offer superior resistance to atmospheric corrosion.

APPLICATIONS
  • Pre-Engineered Metal Buildings
  • Industrial Roofing and Siding
  • Building/Wall Panels
FEATURES

U. S. Steel ACRYZINC™ sheet is a coated sheet product with a clear organic resin surface treatment applied to a galvanized coating to increase corrosion resistance. The surface treatment is essentially invisible, providing excellent characteristics that enhance the performance and applicability of galvanized sheet.

Our ACRYZINC™ steel sheet provides excellent performance for virtually all applications of unpainted galvanized sheet, when: (1) forming requires the application of a light oil (severe draws require additional lubricant), (2) a high resistance to “white rust” is needed, and/or (3) darkening during the initial exposure of the finished product is objectionable. Examples of applications include roll-formed building panels and stamped appliance parts.

APPLICATIONS
  • Roll-Formed Building Panels
  • Stamped Appliance Parts
FEATURES

U. S. Steel COASTALUME™ flat-rolled steels are THE NEXT WAVE in coastal construction. Engineered and warranted for coastal environments, this revolutionary new product combines U. S. Steel’s GALVALUME® steel with DuPont™ Tedlar® PVF film to bring an enhanced level of performance, customization and protection against high concentration of UV rays, excessive heat and rainfall, sea salt spray, and hurricane-force winds.

Tedlar® PVF film is a game-changer with no PFAS forever chemicals. It is applied directly to the steel coil with an adhesive on a coil coating line.

  • Licensed GALVALUME® steel provides excellent long-term durability, strength, and corrosion resistance to protect a building’s roofs and walls for decades.
  • Tedlar® PVF film excels in resisting sea water and salt spray and maintains color integrity even in prolonged sun exposure.
  • Tedlar® is chemically resistant, easy to clean, and offers improved flexibility and impact resistance compared to other coil coating systems.
  • Tedlar® is available in a wide range of colors and finishes, for a long-lasting custom appearance.
  • COASTALUME™ products offer a best-in-class, 25-year steel substrate warranty in addition to the up to 50 year and maintenance-free DuPont™ Tedlar® finish warranty.

For more information about COASTALUME™ products, please email COASTALUME@USS.com OR speak to your U. S. Steel Sales Representative.

To learn more about DuPont™ Tedlar® visit www.tedlar.com

Watch the COASTALUME™ Video https://youtu.be/G_Zbe6u3F1o

BENEFITS
  • Rigorous production control yields a highly uniform, high-quality, protective and decorative coating for long service life at low cost
  • Prepainted GALVALUME® coated sheet 50-60 year anti-perforation
  • PVDF paint chalk, peel and fade
  • Improved solar reflectivity
  • No unsightly storm water runoff staining
  • COR-TEN AZP® prepainted steel sheet is a superior alternative to COR-TEN® steel and other weathering steels in architectural roofing and siding applications
  • High recycled content and total recyclability
APPLICATIONS
  • Pre-Engineered Metal Buildings
  • Industrial Roofing and Siding
  • Building/Wall Panels
FEATURES

U. S. Steel GALVALUME® steel sheet is carbon steel sheet coated with aluminum-zinc alloy by a continuous hot-dip process. The nominal coating composition is 55% aluminum and 45% zinc. A small but important addition of silicon is included in the coating alloy. It is added not to enhance the corrosion performance, but to provide good coating adhesion to the steel substrate when the product is roll-formed, drawn, or bent during fabrication.


U. S. Steel GALVALUME® sheet is recommended when a high level of corrosion resistance is very important. Applications include pre-engineered metal buildings, industrial roofing and siding, air conditioning equipment, automotive under-body parts, building panels, electrical boxes, farm equipment and machinery, walk-in coolers, furnace parts, guide rails, heating equipment, home laundry appliances, outdoor signs, playground equipment, small appliances, vending machines, and wall panels.


APPLICATIONS

Construction

  •  Pre-Engineered Metal Buildings
  •  Industrial Roofing and Siding
  •  Building/Wall Panels
  •  Electrical Boxes
  •  Guide Rails
  •  Playground Equipment

HVAC

  •   Air Conditioning Equipment
  •   Heating Equipment
  •   Walk-In Coolers
  •   Furnace Parts

Automotive/Industrial

  • Automotive Under-Body Parts
  • Farm Equipment and Machinery

Appliance

  •  Home Laundry Appliances
  •  Small Appliances
  •  Vending Machines
FEATURES

U. S. Steel galvanized culvert sheet offers the combination of strength, corrosion resistance and formability needed for such uses as culverts, storm sewers, drain pipe and irrigation pipe, including spiral-formed, welded and lock-seamed corrugated pipe.

U. S. Steel Galvanized Culvert Sheet is a specially manufactured galvanized-steel sheet that provides:

  • A very thick galvanized coating
  • A specified mechanical strength
  • Good formability especially for lock-seam joining
APPLICATIONS
  • Culverts
  • Storm Sewers
  • Drain Pipe
  • Irrigation Pipe
FEATURES

U. S. Steel galvannealed sheet steel is carbon steel sheet coated with zinc on both sides by the continuous hot-dip process.  A thermal process produces an iron-zinc alloy coating that is optimized for painted applications.

The excellent corrosion resistance that results when the alloyed coating is painted is useful in many applications that demand long service life.

  • Excellent service when used on automobiles for both exposed and unexposed applications.
  • Specified for buses, trucks and other vehicles where long life is important.
  • Garage doors, highway signs and vending machines - applications that require good resistance to undercutting corrosion of the coating.

Galvannealed sheet is the best choice for a combination of good paintability, easy weldability and galvanic protection.

APPLICATIONS
  • Exposed and Unexposed Automotive Parts
  • Buses, Trucks and Other Long-Life Vehicles
  • Garage Doors
  • Highway Signs
  • Vending Machines
GALVANNEALED TOLERANCES

U. S. Steel hot-dip coated sheet is produced to meet the dimensional tolerances as shown in the following Tables (I-IV). If your application requires improved tolerances for performance reasons, please inquire. Thickness is measured at any point on the sheet no less than one inch from an edge.

TABLE I - NOMINAL THICKNESS

Hot-Dip Coated Sheet Coils
Tolerances, Over and Under, for Specified Nominal Thickness

SPECIFIED WIDTH,
INCHES
OVER
0.101-0.160
OVER
0.075-0.101
OVER
0.061-0.075
0.061 AND
THINNER
24 - 40 0.006 0.006 0.003 0.002
Over 40 - 60 0.007 0.006 0.003 0.002
Over 60 - 72 0.007 0.007 0.003 0.002
TABLE II - MINIMUM THICKNESS

Hot-Dip Coated Sheet Coils
Tolerances Over Specified Minimum Thickness

SPECIFIED WIDTH,
INCHES
OVER
0.101-0.160
OVER
0.075-0.101
OVER
0.061-0.075
0.061 AND
THINNER
24 - 40 0.012 0.012 0.006 0.004
Over 40 - 60 0.014 0.012 0.006 0.004
Over 60 - 72 0.014 0.014 0.006 0.004
TABLE III - WIDTH

Hot-Dip Coated Sheet

SPECIFIED WIDTH,
INCHES
TOLERANCE OVER SPECIFIED WIDTH,
INCHES
24 - 30 1/8
Over 30 - 48 3/16
Over 48 - 60 1/4
Over 60 - 72 5/16



TABLE IV - FLATNESS

Hot-Dip Coated Sheet
(Not Specified to Stretcher Leveled Standard of Flatness - Coils)

THICKNESS, IN.          SPECIFIED
WIDTH, IN.
FLATNESS TOLERANCES*, IN.
(MAX. DEVIATION FROM A
HORIZONTAL FLAT SURFACE)
Nominal Minimum
0.05 & Thinner 0.048 & Thinner thru 36 3/8
    Over 36-60 5/8
    Over 60-72 7/8
Over 0.05 Over 0.048 thru 36 1/4
    Over 36-60 Over 3/8
    Over 60-72 5/8

* Tolerances are subject to inquiry when the specified yield strength is in excess of 50 ksi or higher.

FEATURES

U. S. Steel hot-dip galvanized sheet is carbon steel sheet coated with zinc on two sides by the continuous hot-dip process. The process results in a layer of zinc on each side of the steel sheet that adheres tightly to the steel through the formation of an iron-zinc alloy bonding layer. The iron-zinc layer is formed by a diffusion process while the heated steel strip is in contact with the molten zinc.

Hot-dip galvanized steel sheet is available from U. S. Steel in many options, including a comprehensive range of sheet widths and thicknesses, metallurgical designations (a range of strengths and formability levels), coating weights (thicknesses), surface finishes, and surface treatments for enhanced performance. The surface treatments can provide enhanced resistance to staining, improved formability, and/or improved paintability. Galvanized sheet can be used bare, prepainted or postpainted.

U. S. Steel galvanized sheet is produced for applications where corrosion resistance is an important service requirement. These applications include air conditioning equipment; automotive parts including body panels and structural members; building panels; display cases; electrical boxes; electronic equipment; farm buildings; equipment and machinery; garbage cans; heating equipment; furnace parts and ductwork; home laundry appliances; lighting fixtures; mailboxes; outdoor signs, playground equipment; prefabricated buildings; refrigerators and freezers; roofing; toolboxes; vending machines; and wall panels. In all these applications, the galvanized coating is specified because it provides enhanced corrosion resistance, and thus, lengthens the useful life of the manufactured products.

APPLICATIONS

Construction

  • Pre-Engineered Metal Buildings
  • Industrial Roofing and Siding
  • Building/Wall Panels
  • Electrical Boxes, Lighting Fixtures
  • Playground Equipment

HVAC

  • Air Conditioning Equipment
  • Heating Equipment
  • Walk-In Coolers
  • Furnace Parts

Automotive/Industrial

  • Automotive Under-Body Parts
  • Farm Equipment and Machinery
  • Vending Machines

Appliance/Household

  • Home Laundry Appliances
  • Refrigerators and Freezers
  • Small Appliances
  • Electronic Equipment
  • Toolboxes
HOT-DIP GALVANIZED TOLERANCES

U. S. Steel Hot-Dip Coated Sheet is produced to meet the dimensional tolerances as shown in the following Tables (I-IV). If your application requires improved tolerances for performance reasons, please inquire. Thickness is measured at any point on the sheet no less than one inch from an edge.

TABLE I - NOMINAL THICKNESS

Hot-Dip Coated Sheet Coils
Tolerances, Over and Under, for Specified Nominal Thickness

SPECIFIED WIDTH,
INCHES
OVER
0.101-0.160
OVER
0.075-0.101
OVER
0.061-0.075
0.061 AND
THINNER
24 - 400.0060.0060.0030.002
Over 40 - 600.0070.0060.0030.002
Over 60 - 720.0070.0070.0030.002



TABLE II - MINIMUM THICKNESS

Hot-Dip Coated Sheet Coils
Tolerances Over Specified Minimum Thickness

SPECIFIED WIDTH,
INCHES
OVER
0.101-0.160
OVER
0.075-0.101
OVER
0.061-0.075
0.061 AND
THINNER
24 - 400.0120.0120.0060.004
Over 40 - 600.0140.0120.0060.004
Over 60 - 720.0140.0140.0060.004
TABLE III - WIDTH

Hot-Dip Coated Sheet

SPECIFIED WIDTH,
INCHES
TOLERANCE OVER SPECIFIED WIDTH, INCHES*
Coils
24 - 301/8
Over 30 - 483/16
Over 48 - 601/4
Over 60 - 725/16

*No Tolerance Under

TABLE IV - FLATNESS

Hot-Dip Coated Sheet
(Not Specified to Stretcher Leveled Standard of Flatness - Coils)

THICKNESS, IN. SPECIFIED WIDTH, IN.FLATNESS TOLERANCES*, IN.
(MAX. DEVIATION FROM A
HORIZONTAL FLAT SURFACE)
NominalMinimum
0.05 & Thinner0.048 & Thinnerthru 363/8
  Over 36-605/8
  Over 60-727/8
Over 0.05Over 0.048thru 361/4
  Over 36-603/8
  Over 60-725/8

* Tolerances are subject to inquiry when the specified yield strength is in excess of 50 ksi or higher.

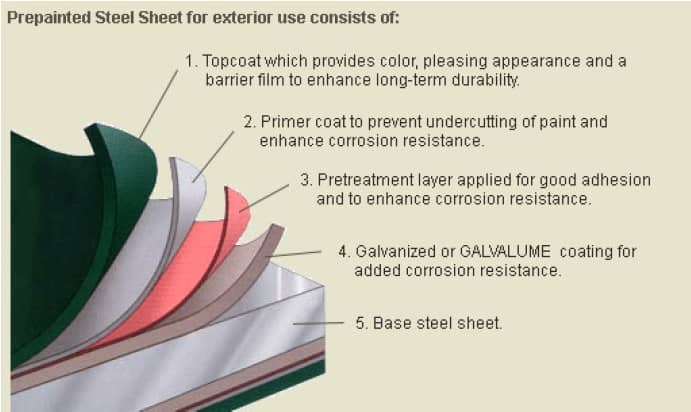

FEATURES

Customers in numerous industries that include the construction, appliance, automotive and container industries are using prepainted steel sheet for the unique combination of advantages it provides—the strength of steel, the corrosion resistance of a metallic coating and the beauty and additional corrosion protection of paint.

Prepainted coated steel sheet offers these important advantages:

  • Light weight due to high strength-to-weight ratio of steel for easier handling, lower shipping costs and easier installation
  • Excellent dent resistance—steel sheet withstands impacts from wind-borne objects
  • Design flexibility—multiplicity of grades and strength levels permits designing to specific needs
  • Exciting colors—rich tones in almost infinite variety
  • High quality—in recent years, steel quality and paint technology have both improved greatly, and the synergistic effect results in a high-performance material
  • Recoatability—prepainted steel sheet can be repainted to coordinate with changes in décor
  • Readily available—productivity gains combined with new facilities in recent years have made prepainted steel sheet readily available in every geographical market
APPLICATIONS

Industries

  • Construction
  • Appliance
  • Automotive
  • Container
FEATURES

Now, with our unique Weathered Metal Series® steels, customers have a choice of two additional, distinct stages of aging—moderately weathered Raw and more heavily weathered Robust—to accompany the fully weathered appearance of COR-TEN AZP® steel. Each pattern is carefully crafted and engineered to give roofing or cladding projects the authentic look of timelessness. In addition to these two new finishes, we’ve also expanded our selection of colors, offering an even greater variety of looks for your next project.

The Weathered Metal Series® steel is made with a fluoropolymer coating system that uses cool pigment technology that can be applied over G-90 Hot-Dipped Galvanized coated steel sheet and GALVALUME® coated steel sheet. Colors available are: GALV-TEN® COPPER-TEN™ and COR-TEN AZP®, each with its own solar reflectance rating.

APPLICATIONS
  • Pre-Engineered Metal Buildings
  • Industrial Roofing and Siding
  • Building/Wall Panels
FEATURES

ZMAGTM coated steel is our innovative new coated carbon flat-rolled steel product made to meet the needs of today’s industrial landscape. Specially engineered to battle the harshest elements, ZMAG coated steel provides superior corrosion resistance, durability and longevity. ZMAG steel is stronger, more resilient, and more sustainable than any other any other coated steel product in North America.

Download the ZMAG Warranty

To learn more visit: ussteel.com/usszmag.com
